Midi Recorder/Player

イタリアのPaoloさんからMIDI Recorder/Playerの製作報告を頂きました。

まだプロトタイプの制作中だそうです。

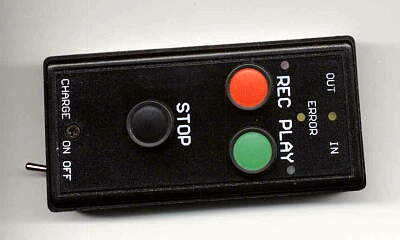

フロッピータイプのシーケンサの代わりにパイプオルガンのコンソールに内蔵して使ったり、外部メモリは着脱可能な基板に（ちょうどスマートカードのように）して、演奏データの移動が出来るように工夫されています。

PCB、ケースともたいへん綺麗に製作されています。ケースの印刷が見事だったのでお聞きしたところ、シルクスクリーンで印刷されたとのこと。実に手間がかかっています。

I received the manufacture report of MIDI Recorder/Player from Mr. Paolo in Italy.
That is good job! Thank you for your reports.

The photographs and his comment.

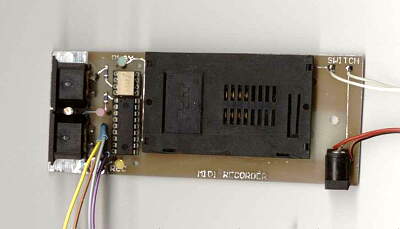

I've started to build my version of the MIDI data rec-player.
Just wayting for memories.

I'm evaluating if it is possible to use a sort of connector and more than one group of memories, to extend time for recording,
in the same way, for example, as photo cameras.
This means I can put the recorder-player inside the consolle of a pipe organ, and the player can remove memories and use with another recorder-player at home, connected to his-her computer, the same way he used floppy with old-style " sequencer".

(1st prototype)

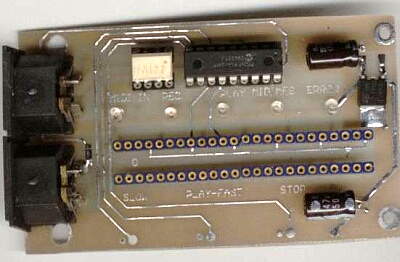

This is just the starting of my second prototype.
This is the main PCB, I still need some other PCBs with memories with the dimension of a "smart-card" to put into the connector ( the small black box below the PIC16f84).

Next version will have memories on board plus connector for external memories.

(2nd prototype)
